Many-Task Computing with Python

Outline

1. High Performance Computing
   • Types of applications
   • Define Many-task computing
2. Why Python for HPC?
   • Key packages for scientific computing
   • Abstraction
3. Many-task computing with Python
   • Scaling

Conclusions, questions

Goals

1. Understand the landscape of HPC
2. Links to key packages
3. Tools
   • Notebook
   • Easy parallelism
4. Lots of examples
   • Learn something useful
   • Download and try it!

Using applications to solve problems

1. Size
   • Solve problems that can't fit on a laptop
   • Need more than a few GB of RAM
   • Need more than a few hundred GB of Disk
2. Speed
   • Same problem, faster
   • Makes a bigger problem more feasible

Henry Neeman, Super Computing in Plain English

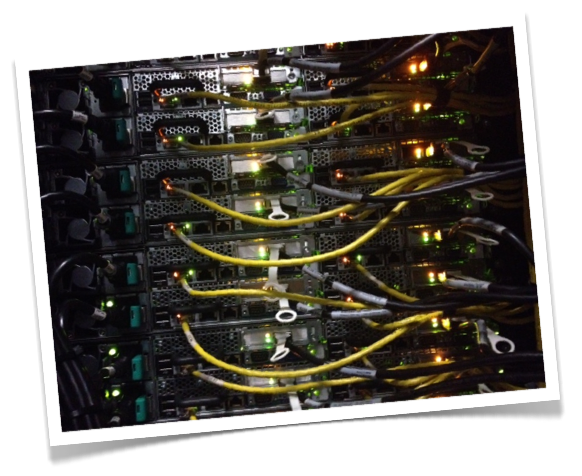

Supercomputing

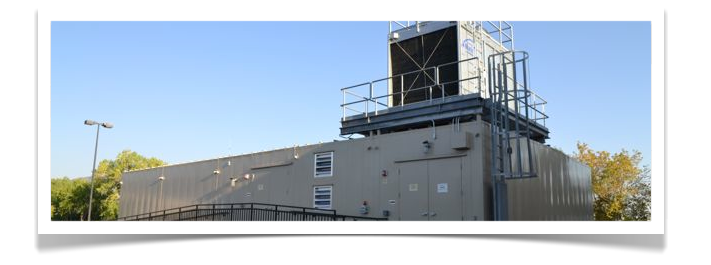

Janus macbook comparison

Macbook	Janus
2.4 GHz Intel x2	2.8 GHz Intel x12 X 1360	~8000X
8 GB RAM	24 GB RAM	~4000X
3 M cache	12 M cache

Parallel Computing

Landscape of Applications

Ioan Raicu, Many-Task Computing: Bridging the Gap between High Throughput Computing and High Performance Computing

Comparing MTC and HTC

• Many-task Computing (MTC)
  • Use a large resources over a short period
  • May not be single-core and independent
  • Peformance per second
• High-throughput Computing (HTC)
  • Operations per month

Applications that are communication-intensive but are not naturally expressed in MPI. -Ioan Raicu

University of Colorado

• Some tightly-coupled MPI codes
• Many simulations
  • Monte Carlo, parameter scans, UQ, parameter optimization
• Diverse computing backgrounds
  • Geography, Ecology and Evolutionary Biology, Microbial Ecology, Geology, Astronomy
• Range of computational experience

Andy TerrelGetting started with Python in HPC

Success Stories

~500,000 simulations on ~7,000 cores with mpi4py

Parameter optimization on ~100 cores with Scoop and DEAP

Improved biological workflow with IPython Parallel

Wrapped an engineering simulation with f2py and IPython Parallel

Packaged multiple MPI tasks with Jinja2

Benchmarking: mpi4py , pandas , Jinja2 , Django

Working on MapReduce with disco and spark

Working on Workflow with NetworkX , IPython Parallel , and Scoop

Why Python?

• Flexible, powerful programming language
• Easy to learn
• Accessible to non-programmers
• Glue
• Free and open
• Large community
• Abstraction

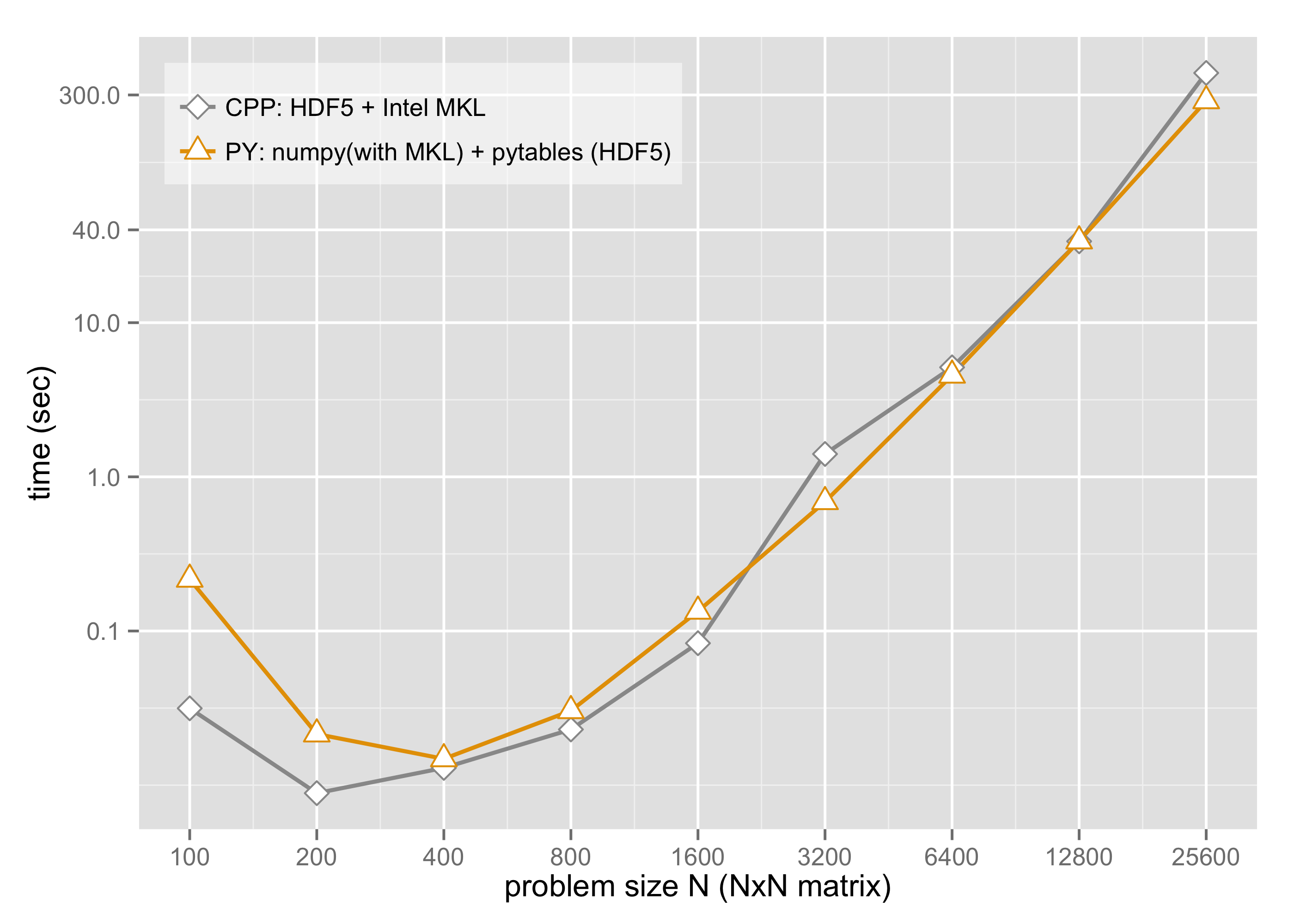

Numpy (MKL) and Pytables

import numpy as np
import tables as tb

def read_h5(filename):
    filename = filename
    h5 = tb.openFile(filename, mode = "r")
    X = h5.root.x.read()
    h5.close()
    return X

if __name__ == '__main__':

    args = get_args(sys.argv[1:])

	A = read_h5(args.matrixA)
	B = read_h5(args.matrixB)
	C = np.dot(A,B)

2 reads, multiply, 1 write

mpy4py

from mpi4py import MPI

comm = MPI.COMM_WORLD
rank = comm.Get_rank()

if rank == 0:

   data = {'key1' : [7, 2.72, 3.2],
           'key2' : ( 'abc', 'xyz')}
else:
   data = None

data = comm.bcast(data, root=0)

Many-task Computing

#!/usr/bin/env python
import argparse, sys, time

def get_args(argv):
    parser = argparse.ArgumentParser()
    parser.add_argument('-t','--time', help='e.g. --time=50')
    return parser.parse_args(argv)

def work(x):
    time.sleep(x)
    return x

if __name__ == '__main__':

    args = get_args(sys.argv[1:])
    work(float(args.time))

What is the more efficient way to execute work a thousand times?

python work.py --time=10

Approach

Condor/Moab/SLURM
Bash/pbsdsh: painful example
MPI mpi4py: not always what we want
Python

• SAGA BigJob
• multiprocessing: simple and included, example
• Message broker: IPython parallel, Celery

and many, many more ...

Bash/pbsdsh

#!/bin/bash
PATH=$PBS_O_WORKDIR:$PBS_O_PATH
TRIAL=$(($PBS_VNODENUM + $1))
python work.py --time=5

for i in {1..N}
do
  pbsdsh wrapper.sh $count
  count=$(( $count + 12))
done

A little painful

A little inefficient

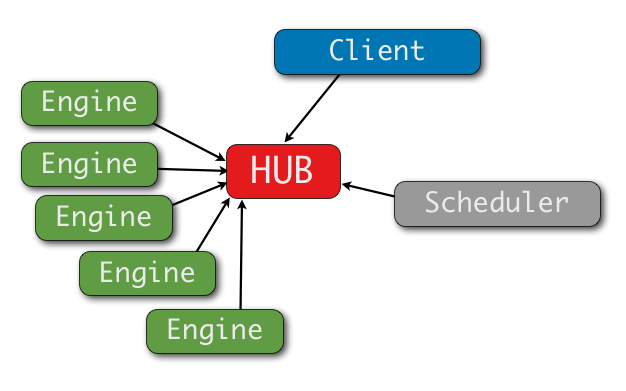

Message queues

elasticity, memory, fault-tolerance

Examples: celery (AMQP) and IPython (0MQ) .

Examples

Weak Scaling

Compare: mpi4py, IPython Parallel, Celery
What recommendations can we offer?
Best case scenario

• Small messages, limited file IO, sleep

Weak scaling

• task = 10 * number of cores
• up to 12,288 cores
• time uniform(27,33) seconds

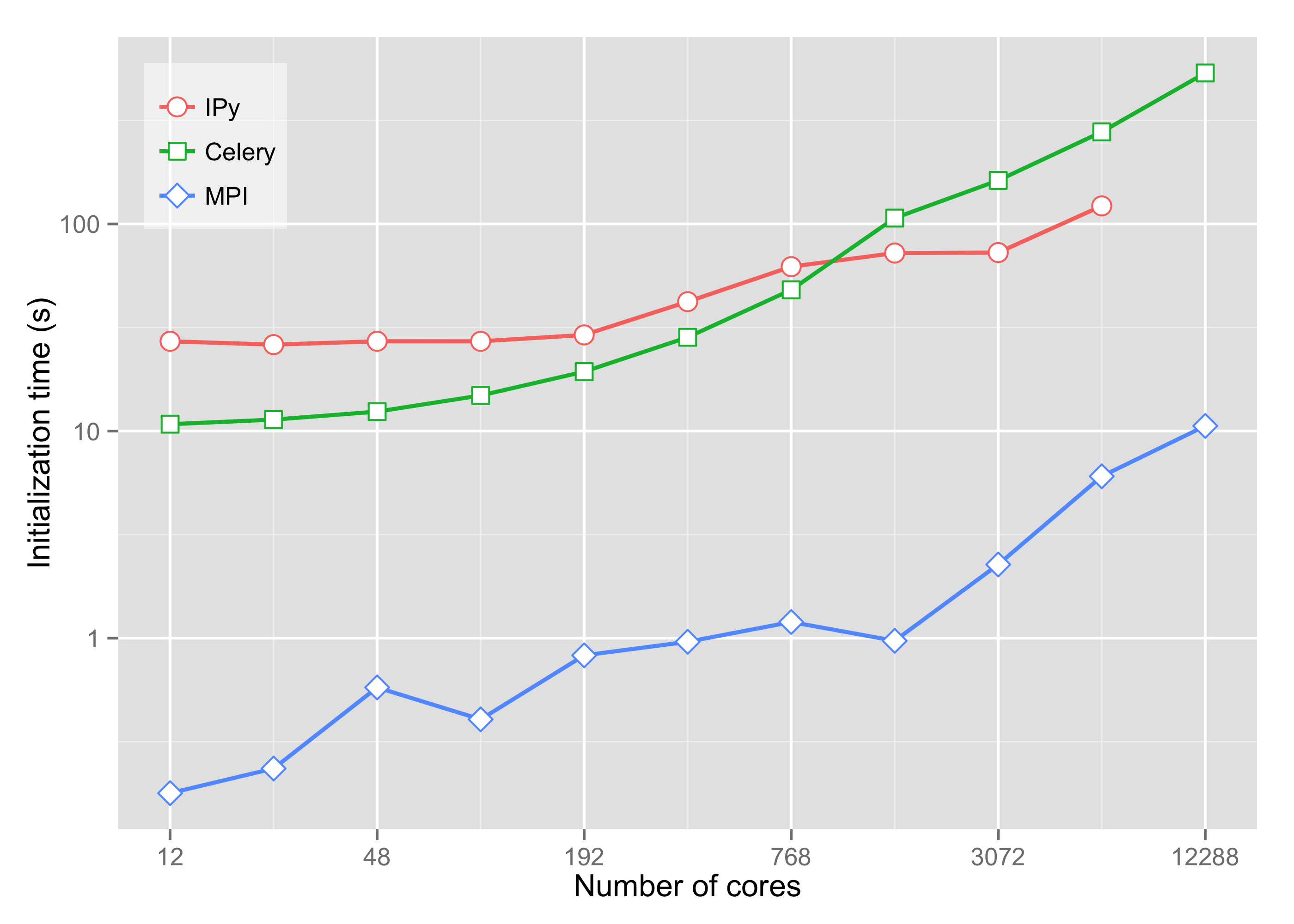

Initialization

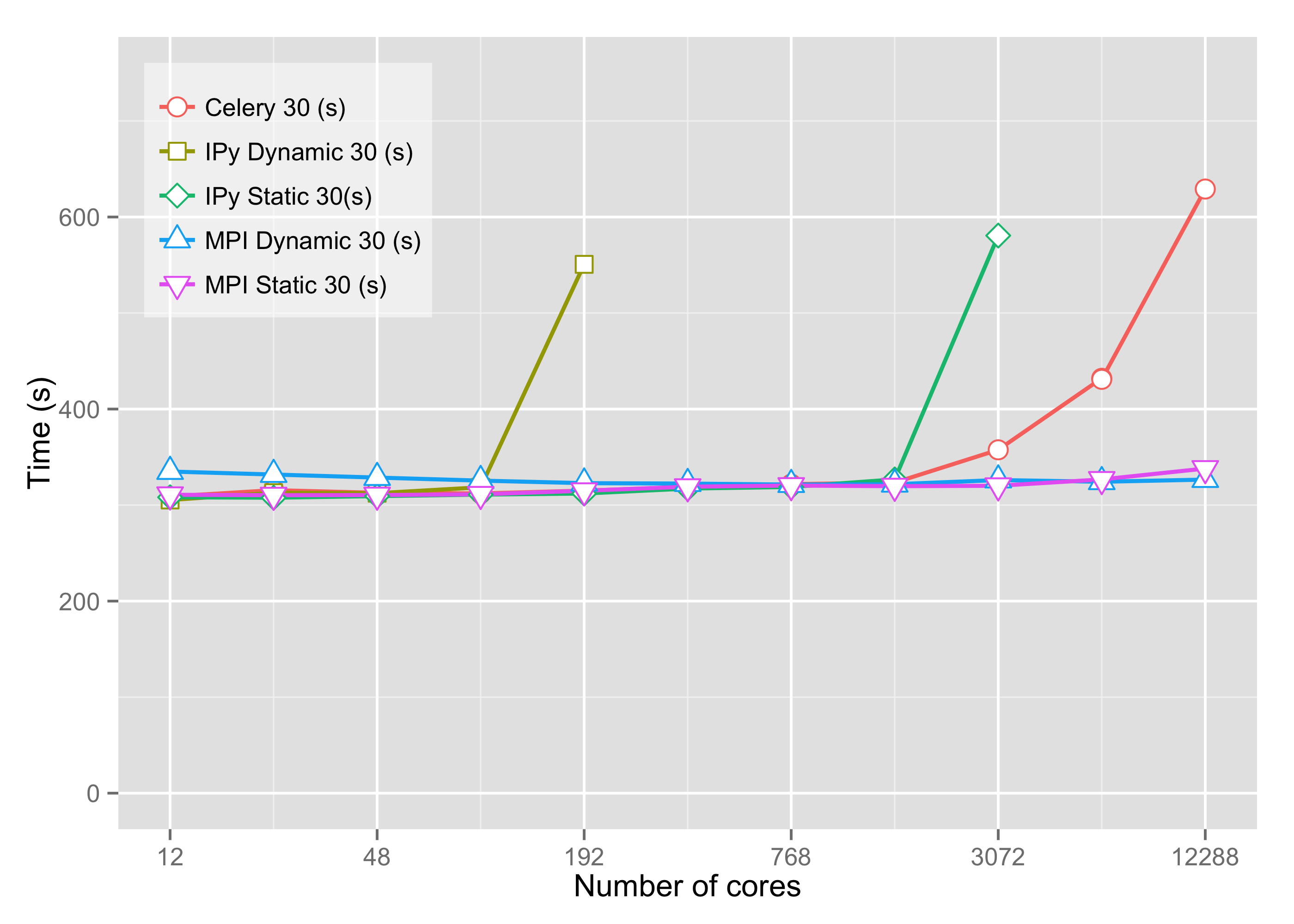

Weak scaling time

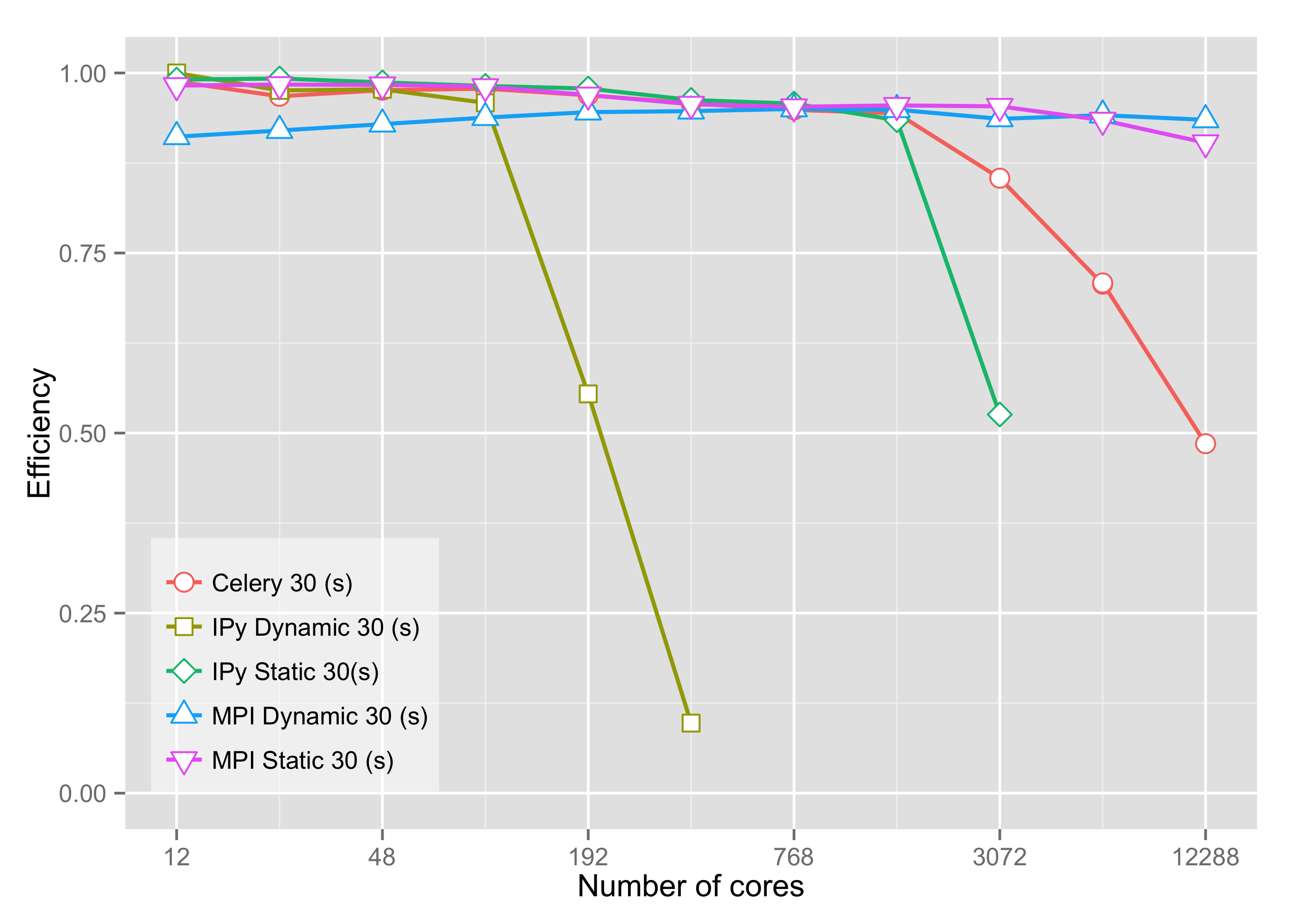

Weak scaling efficiency

Compare

mpi4py	many cores, not fault-tolerant
IPython	100 cores, fault-tolerant
IPython	many cores, fault-tolerant, consistent time
Celery	many cores, fault-tolerant, variable time
Multiprocessing	single-node

IPython, Celery	launching
all	user abstraction

Conclusions

Python is an excellent way to manage MTC jobs

Python provides great abstraction

IPython and Celery

• elastic, memory, fault-tolerant

Moving forward

• Simple interface for MTC load_balance_ipython
• Realistic tasks

References

paper

Scaling of Many-Task Computing Approaches in Python on Cluster Supercomputers
Monte Lunacek et al. IEEE Cluster 2013

tutorials Univeristy of Colorado Computational Science and Engineering

slides and code
https://github.com/mlunacek/data_science_meetup_2013
